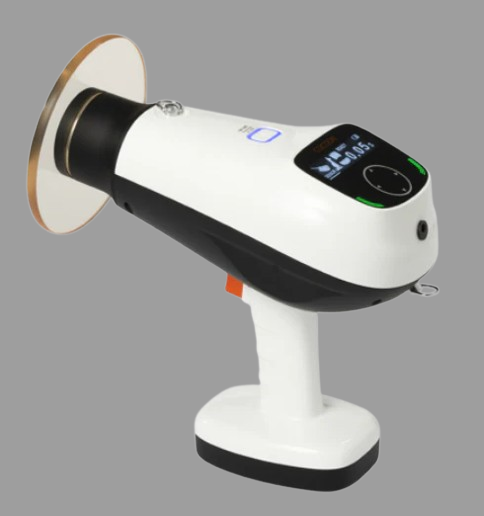

The Max-Ray® Cocoon BX-7017 Handheld X-Ray is a modern, high-performance portable imaging system designed for speed, mobility, and ease of use. With its camera-style ergonomic design and advanced features like voice prompting and long battery life, the Cocoon is built to streamline workflow while delivering consistent, high-quality diagnostic images.
Key Features
- Lightweight & Ergonomic Design
Weighs under 5 lbs, allowing comfortable one-handed operation and easy movement between operatories.
- High-Frequency Imaging Performance
Produces sharp, high-resolution images with stable output and a precise 0.4 mm focal spot.
- Long-Lasting Battery System
Capable of 500+ exposures per charge, supporting full-day clinical use.

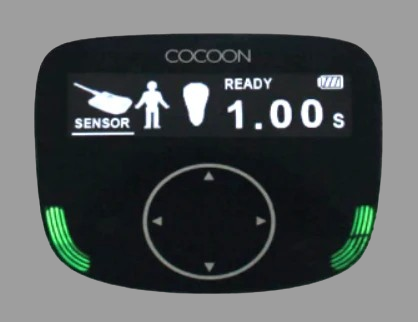

- Voice Prompting Interface
Built-in voice guidance enhances usability and helps streamline operation for staff.
- Zero Leakage Safety Design
Engineered for operator and patient safety with minimal radiation leakage.
- On-Target Alignment Technology
Helps improve positioning accuracy and reduce retakes, saving time and improving workflow.
Technical Specifications
X-Ray Generator
- Tube Voltage: 70 kV
- Tube Current: 1.7 mA
- Focal Spot: 0.4 mm
- Filtration: ~2.3 mm Al
Power & Battery
- Rechargeable lithium battery
- ~500 exposures per charge
- Backup battery included
Physical Specifications
- Weight: ~4.4 lbs
- Design: Handheld, camera-style unit
- Operation: One-handed use with optional strap
- Cooling System: Oil-cooled system for stability
Included Components
- Handheld X-ray unit
- Backscatter shield
- Internal battery + backup battery

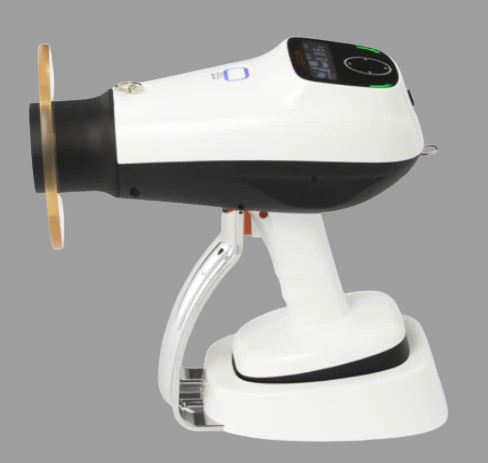

- Charging cradle and power adapter
- Carrying case and accessories
Applications
- Intraoral radiography
- General diagnostics
- Endodontic, implant, and restorative procedures
Warranty
- 2-Year Factory Warranty for dependable performance and peace of mind
