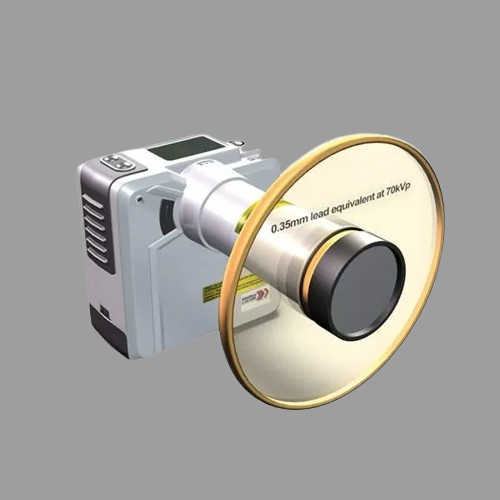

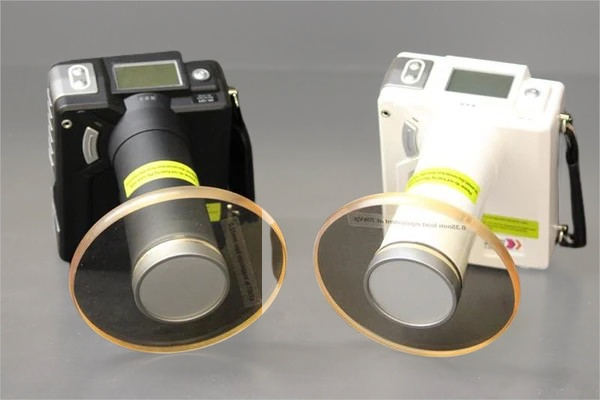

Max-Ray® Handheld X-Ray (BX-3000)
The Max-Ray® BX-3000 Handheld X-Ray is a dependable and cost-effective portable imaging solution built for dental practices that need mobility without sacrificing image quality. Designed with a camera-style form factor, this unit allows clinicians to stay chairside while capturing consistent, high-resolution radiographs.
Key Features
- True Portable Workflow
Handheld, cordless design eliminates the need for wall-mounted systems—making it ideal for multi-operatory setups or mobile dentistry.
- High-Quality Imaging
High-frequency generator delivers sharp, diagnostic images with stable output.
- Long Battery Life + Backup
Capable of 300–500 exposures per charge with an included backup battery to eliminate downtime.
- Lightweight & Ergonomic
Weighs approximately 4.4 lbs, making it easy to handle during extended use.
- OLED Display & Ambidextrous Design
Bright, easy-to-read screen with left/right-hand operation capability for operator flexibility.
- Complete Kit Included
Typically includes unit, internal battery, backup battery, charger, charging pad, neck strap, and carrying case.
Technical Specifications
X-Ray Generator
- Tube Voltage: ~65 kV
- Tube Current: ~1.7 mA
- Focal Spot: 0.4 mm
- Filtration: ~2.3 mm Al
Power & Battery
- Rechargeable lithium battery system
- 300–500 exposures per charge
- Backup battery included
Physical Specifications
- Weight: ~4.4 lbs
- Design: Handheld, camera-style unit
- Display: OLED screen
- Build: Durable housing for clinical environments
Applications
- Intraoral radiography
- General diagnostics
- Endodontic and restorative procedures
Warranty
- 2-Year Factory Warranty for dependable performance and peace of mind
