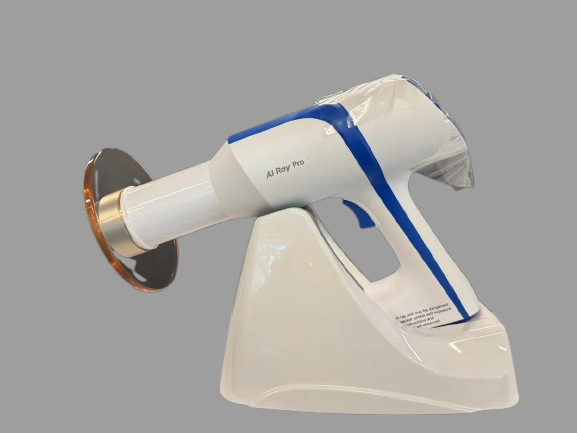

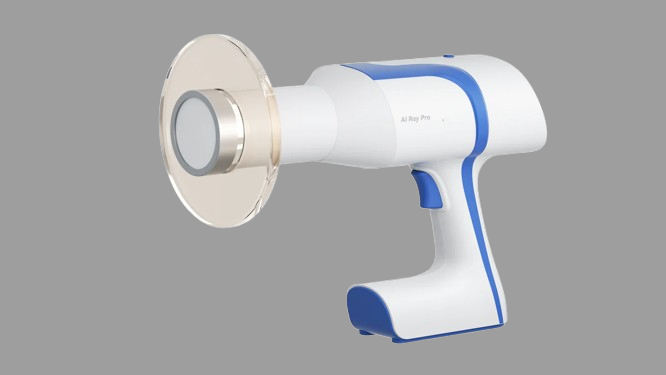

Woodpecker® Handheld X-Ray (AiRay Pro)
The Woodpecker® AiRay Pro Handheld X-Ray delivers powerful, portable imaging with advanced technology designed for modern dental practices. Built for efficiency, reliability, and ease of use, this unit provides high-quality diagnostic imaging in a compact, ergonomic design.
Key Features
- High-Performance X-Ray Tube
Imported Japanese Canon 0.4mm high-frequency X-ray tube for precise, high-resolution imaging.
- Powerful Output
Emission power up to 210W, ensuring consistent performance and image clarity.
- Long-Lasting Battery
15,000mAh high-capacity lithium battery supports 1500+ exposures on a full charge.
- Fast Charging Capability
80W rapid charging allows operation after just 5 minutes of charging.
- Modern Touchscreen Interface
2.8-inch intuitive touch display for easy control and workflow efficiency.
Technical Specifications
Power & Electrical
- Power Adapter Input: 100–240V, 50/60Hz
- Internal Power Supply: DC 10.8V
X-Ray Tube
- Model: D-045
- Focal Spot: 0.4mm
- Target Angle: 12.5°
- Total Filtration: 1.5mm Al / 70kV
- Additional Filtration: 0.5mm Al / 70kV
Physical Specifications
- Dimensions: 114 × 363.8 × 245.6 mm
- Weight: 3.0 kg (6.6 lbs)
Warranty
- 2-Year Factory Warranty included for peace of mind and long-term reliability.
